4 Link Rear Suspension

Chevrolet Camaro (1970) - 1970 Camaro Project

SoloC4's Avatar
Posted by: |

I have started the installation of the Helix 4 link. This is a universal kit and required a lot of modifications to the brackets and control arms to fit properly. The upper coil over mount is a custom fabricated piece and I will add the upper brackets once I receive the shocks. At this point the rear housing can be painted and assembled, but will not be installed for several months, if not years while I work on the rest of the car.



Drop car images here or click to select

Drag and drop images to rearrange their order. The first image will appear as the main image on card tiles.

  • Image ☰
  • Image ☰
  • Image ☰
  • Image ☰
  • Image ☰
  • Image ☰
  • Image ☰
  • Image ☰
No title-1111

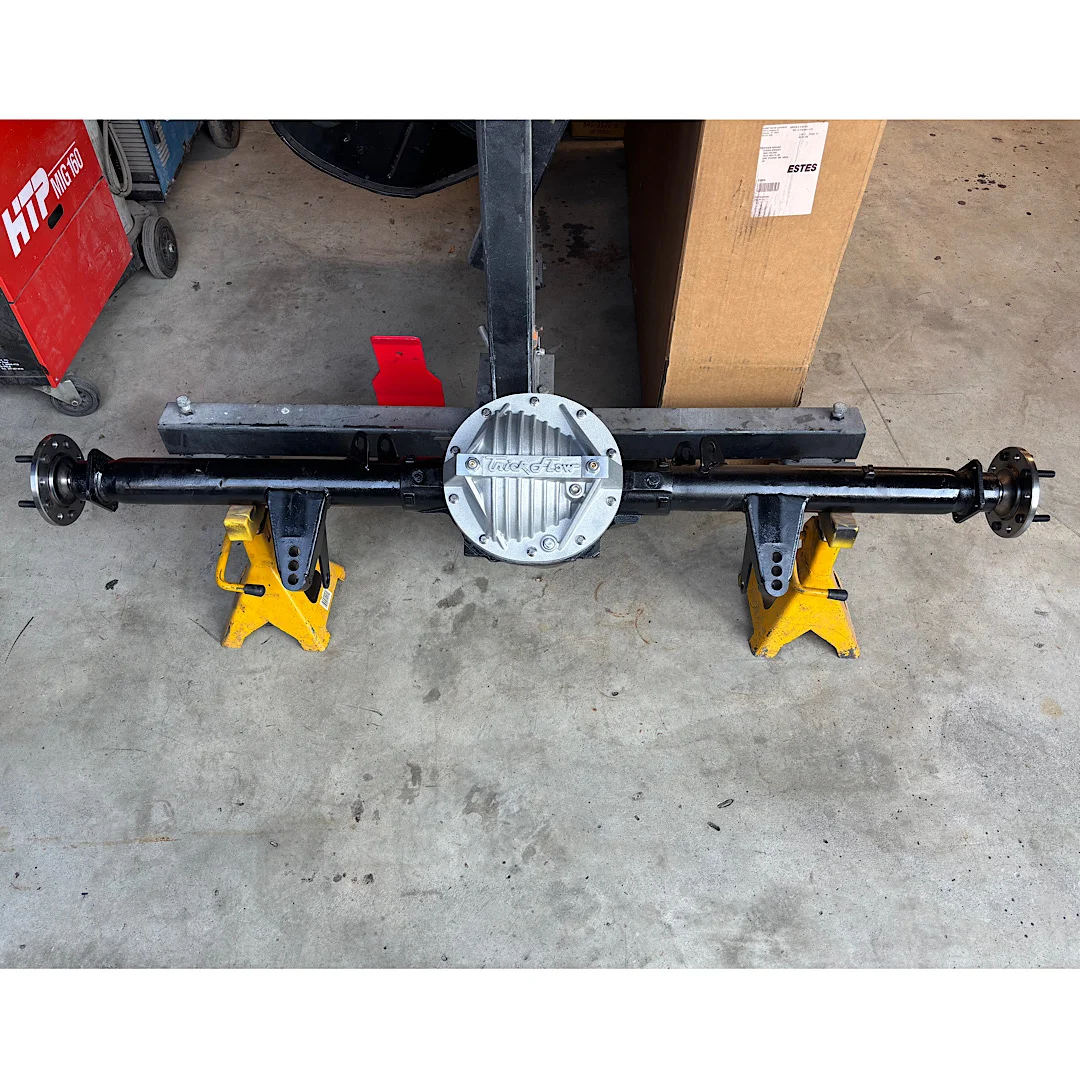

Helix universal 4 link kit
No title-1112
Upper and lower control arm brackets tacked up
No title-1113
Fabricating an upper coil-over mount
No title-1114
Coil-over bar mocked in place
No title-1115
Sketchy differential jack mounted to rotisserie
No title-1116
Setting ride height
No title-1117
Verifying measurements and clearances
No title-1118
Fits great. Differential needs paint and assembly
